Aggregating Metrics in Spans

Logfire lets you aggregate counter and histogram metrics within the current active span and its ancestors. This is particularly useful for calculating totals for things like LLM token usage or costs on higher-level operations, making it easier and more efficient to query this data without processing individual child spans.

This guide will walk you through how to enable this feature and use it with both custom metrics and automated instrumentation.

Note

This is an experimental feature. The API and data format may change in future releases. We welcome your feedback to help us prioritize improvements and stability.

This only works for metrics recorded within the same process. It does not aggregate metrics across distributed traces.

Enabling Metric Aggregation

This feature is always enabled for any metric named operation.cost, which in particular is recorded by Pydantic AI (since v1.0.11) when instrumented for LLM costs.

To enable this feature for all metrics, you need to configure Logfire with the collect_in_spans option in MetricsOptions. This should be done once when your application starts.

import logfire

logfire.configure(metrics=logfire.MetricsOptions(collect_in_spans=True))

Once enabled, any counters or histograms recorded within a span will be aggregated into a logfire.metrics attribute on that span.

Example: A Custom Counter

Let's start with a simple example of tracking some cumulative amount.

First, we define a metric counter. Then, within a span, we add to it multiple times.

import logfire

logfire.configure(metrics=logfire.MetricsOptions(collect_in_spans=True))

counter = logfire.metric_counter('my_amount')

with logfire.span('doing stuff'):
    counter.add(1)
    counter.add(2)

The doing stuff span will now contain a logfire.metrics attribute that holds the aggregated total of the my_amount counter, i.e. 3. Running the following query in the Explore view:

SELECT attributes->>'logfire.metrics'->>'my_amount'->>'total' AS total_amount
FROM records
WHERE span_name = 'doing stuff'

will return one row with total_amount equal to 3.

Example: LLM Token Usage and Costs with Pydantic AI

Generative AI instrumentations like Pydantic AI or OpenAI that follow OpenTelemetry conventions will record a metric called gen_ai.client.token.usage. You can use metric aggregation to get a total of tokens used in a higher-level operation that may involve multiple LLM calls. Pydantic AI specifically also records an operation.cost metric, which is always aggregated.

Here’s an example:

from pydantic_ai import Agent
import logfire

logfire.configure(metrics=logfire.MetricsOptions(collect_in_spans=True))
logfire.instrument_pydantic_ai()

agent = Agent('gpt-4o')

@agent.tool_plain
async def get_random_number() -> int:
    return 4

with logfire.span('span'):
    agent.run_sync('Give me one random number')
    agent.run_sync('Generate two random numbers')

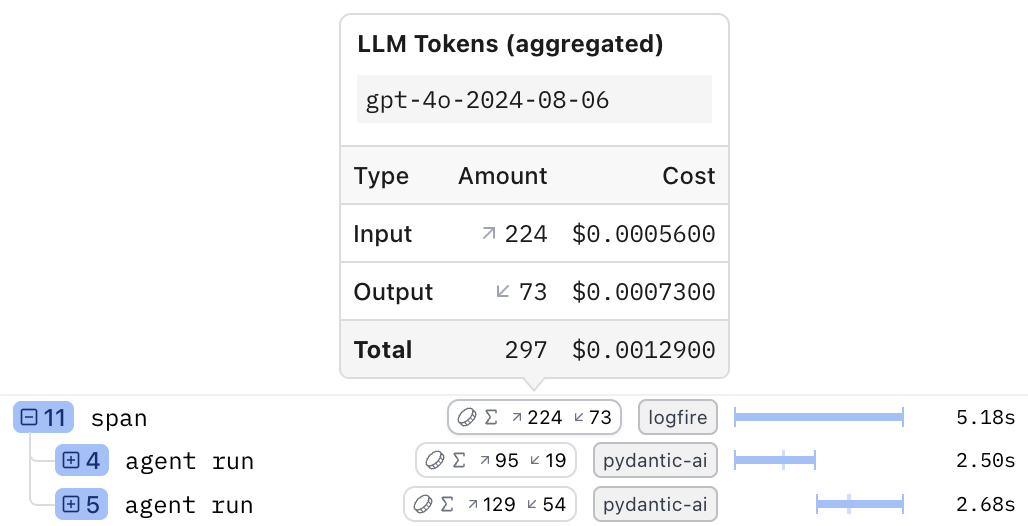

The calls to agent.run_sync create child spans named agent run. The outer span aggregates the token metrics from these children, as shown in the Live View:

Token and cost aggregation in live view

Understanding the Span Data

The outer 'span' now has a logfire.metrics attribute containing the aggregated token data from the two agent.run_sync calls. The JSON structure looks like this:

{
  "gen_ai.client.token.usage": {
    "details": [
      {
        "attributes": {
          "gen_ai.operation.name": "chat",
          "gen_ai.request.model": "gpt-4o",
          "gen_ai.response.model": "gpt-4o-2024-08-06",
          "gen_ai.system": "openai",
          "gen_ai.token.type": "input"
        },
        "total": 224
      },
      {
        "attributes": {
          "gen_ai.operation.name": "chat",
          "gen_ai.request.model": "gpt-4o",
          "gen_ai.response.model": "gpt-4o-2024-08-06",
          "gen_ai.system": "openai",
          "gen_ai.token.type": "output"
        },
        "total": 73
      }
    ],
    "total": 297
  },
  "operation.cost": {
    "details": [
      {
        "attributes": {
          "gen_ai.operation.name": "chat",
          "gen_ai.request.model": "gpt-4o",
          "gen_ai.response.model": "gpt-4o-2024-08-06",
          "gen_ai.system": "openai",
          "gen_ai.token.type": "input"
        },
        "total": 0.00056
      },
      {
        "attributes": {
          "gen_ai.operation.name": "chat",
          "gen_ai.request.model": "gpt-4o",
          "gen_ai.response.model": "gpt-4o-2024-08-06",
          "gen_ai.system": "openai",
          "gen_ai.token.type": "output"
        },
        "total": 0.00073
      }
    ],
    "total": 0.00129
  }
}

Note:

  1. Each total value (both at the top level and inside details) in the JSON matches a value in the token badge in the UI.
  2. Each of these metrics (but not metrics in general) has separate entries for input and output in the details, each with its own total. In general, each combination of values of attributes has its own entry in details. Here, the only differing attribute is gen_ai.token.type.

The general structure of logfire.metrics is:

{
  "<metric_name>": {
    "details": [
      {
        "attributes": { ... },
        "total": <number>
      },
      ...
    ],
    "total": <number>
  },
  ...
}

Querying Nested Token Data

To query these nested details, you need a more complex SQL query to "un-nest" the JSON data into a flat, table-like structure.

WITH
    with_span_metric_name AS (SELECT unnest(json_keys(attributes->>'logfire.metrics')::text[]) AS span_metric_name, * FROM records),
    with_span_metric AS (SELECT attributes->>'logfire.metrics'->>span_metric_name AS span_metric, * FROM with_span_metric_name),
    with_span_metric_detail AS (SELECT span_metric->>'details'->>unnest(generate_series((json_length(span_metric->>'details') - 1)::int)) AS span_metric_detail, * FROM with_span_metric)
SELECT
    span_name,
    span_metric_name,
    span_metric_detail->>'total' AS total,
    span_metric_detail->>'attributes'->>'gen_ai.token.type' AS token_type
FROM with_span_metric_detail
WHERE span_metric_name = 'gen_ai.client.token.usage'

How this query works:

  • The WITH clauses progressively expand the nested JSON in the logfire.metrics attribute.
  • with_span_metric_name unnests the metric names (e.g. gen_ai.client.token.usage and operation.cost).
  • with_span_metric extracts the JSON object for each metric.
  • with_span_metric_detail unnests the details array, creating a separate row for each item (one for input and one for output in our example).

You can copy the WITH clauses as a reusable prefix for any query that needs to analyze aggregated metrics. The final SELECT statement then easily extracts the totals.

The result of this query will look like this, showing token counts and costs broken down by span and type:

span_name span_metric_name total token_type
span gen_ai.client.token.usage 224 input
span gen_ai.client.token.usage 73 output
span operation.cost 0.00056 input
span operation.cost 0.00073 output
agent run gen_ai.client.token.usage 95 input
agent run gen_ai.client.token.usage 19 output
agent run operation.cost 0.0002375 input
agent run operation.cost 0.00019 output
agent run gen_ai.client.token.usage 129 input
agent run gen_ai.client.token.usage 54 output
agent run operation.cost 0.0003225 input
agent run operation.cost 0.00054 output
