SQL

Syntax

Logfire lets you query your data using SQL. The underlying database is Apache DataFusion, so the primary reference for the SQL syntax can be found in their SQL Language Reference. However it's generally meant to match PostgreSQL syntax which is easier to look up. We also extend it in various ways, particularly with JSON functions and operators such as ->>.

Tables

Data is stored in two main tables: records and metrics.

records is the table you'll usually care about and is what you'll see in the Live View. Each row in records is a span or log (essentially a span with no duration). A trace is a collection of spans that share the same trace_id, structured as a tree.

metrics contains pre-aggregated numerical data which is usually more efficient to query than records for certain use cases. There's currently no dedicated UI for metrics, but you can query it directly using SQL in the Explore view, Dashboards, Alerts, or the API, just like you would with records.

Technically records is a subset, the full table is called records_full which includes additional rows called pending spans, but you can ignore that for most use cases.

records columns

Basic

To demonstrate some commonly used columns, if you run this script:

import logfire

logfire.configure()

logfire.warn('beware: {thing}', thing='bad', _tags=['a tag'])

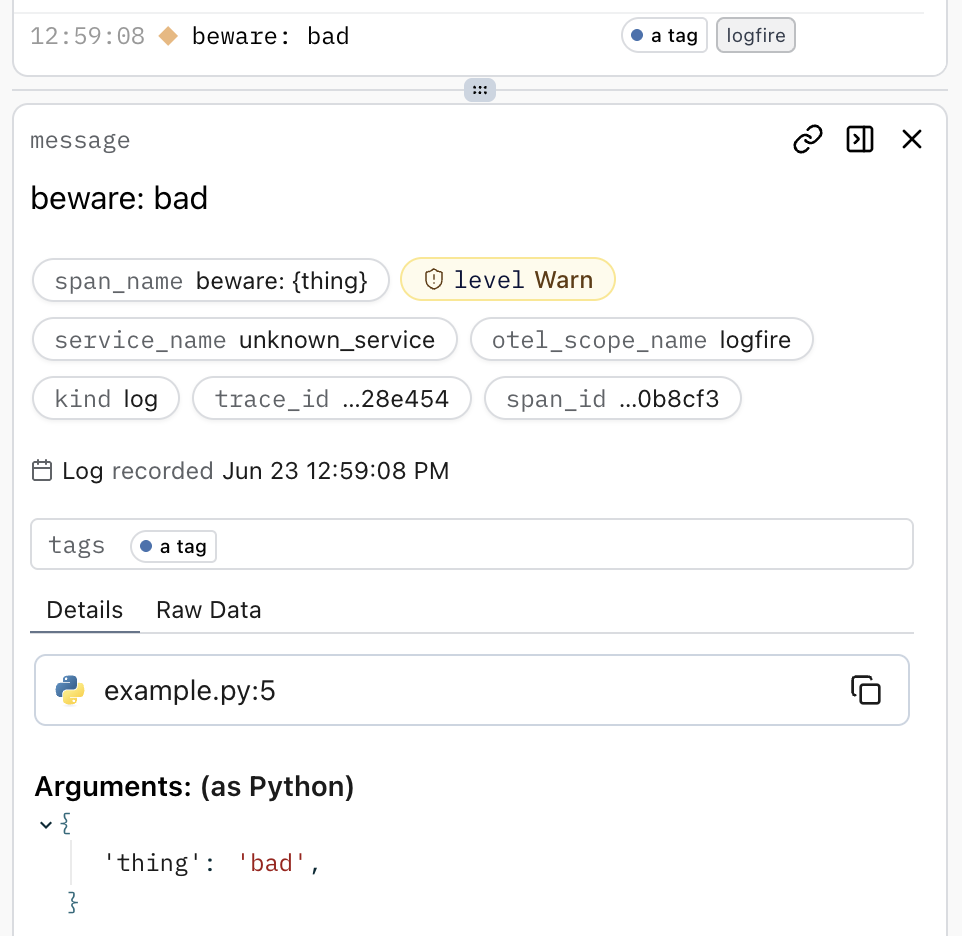

You will see this in the Live view:

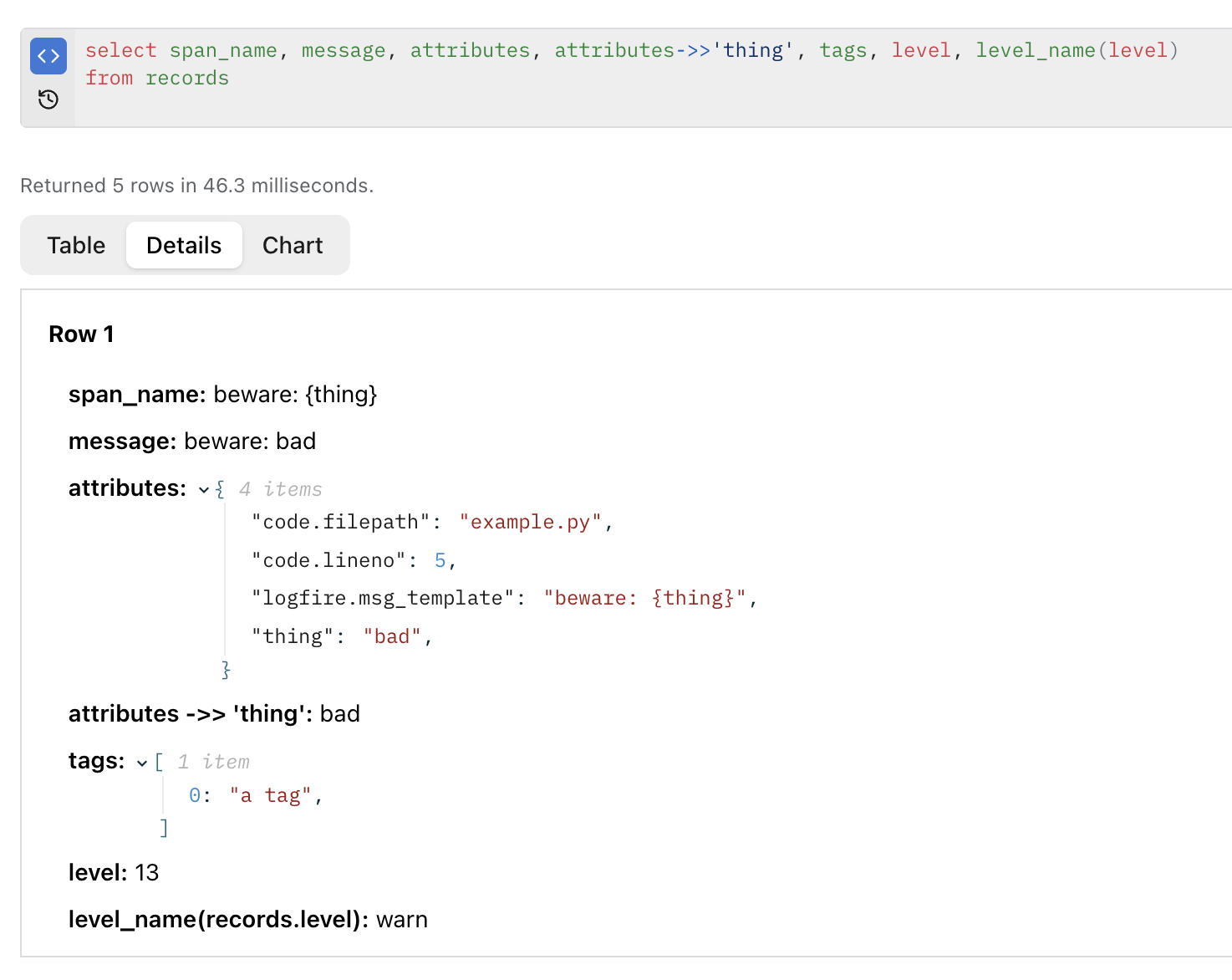

Here's an example of querying in the Explore view:

span_name

This is a string label which is typically shared by similar records. Clicking the span_name bubble in the details panel of the Live view will give you a few options to filter by that span name, which is a good way to find other records like this one. It should be low cardinality, meaning there shouldn't be too many unique values.

When using methods from the Logfire SDK, this will usually be the template without any arguments filled in, e.g. above it's 'beware: {thing}'.

In HTTP server request spans, this is usually the HTTP method and route, e.g. 'GET /users/{id}'. Note that it doesn't use the actual path (e.g. /users/123).

In database query spans, this is usually just the operation, e.g. 'SELECT', 'INSERT', or 'UPDATE'.

See the docs on messages and span names and the OpenTelemetry spec for more details.

message

This is a human-readable description of the record. It's the text in each line of the list of records in the Live view.

Typically this is similar to the span_name but with any arguments filled in, e.g. above it's 'beware: bad'.

In HTTP server request spans, this is usually the HTTP method and route with the actual path filled in, e.g. 'GET /users/123'.

In database query spans from the Python Logfire SDK, this is usually a summary of the SQL query. This can be useful for finding and grouping records with similar but slightly different queries.

It's usually faster and more correct to use span_name in queries. message is primarily for human readability and is more likely to change over time. But if you want to query it, you probably want to use the LIKE (or ILIKE for case-insensitive) SQL operator, e.g. WHERE message LIKE '%bad%' to find all records where message contains the substring bad.

OpenTelemetry doesn't have a native 'message' concept. To set a value for the message column when using other OpenTelemetry SDKs, set the attribute logfire.msg. This will not be kept in the attributes column.

attributes

This is a JSON object containing arbitrary additional structured data about the record. It can vary widely between records and even be empty.

You can query it using the ->> operator, e.g. above attributes->>'thing' = 'bad' (note the single quotes, "thing" or "bad" would look for SQL columns with those names and fail) would match our record because of the thing='bad' argument in the logfire.warn() call. For nested JSON, you can chain multiple ->> operators, e.g. attributes->>'nested'->>'key'. You can also use -> which is mostly interchangeable, but if you get weird errors about types, try using ->> instead.

See the manual tracing docs on attributes for more information about setting attributes in the Logfire SDK.

Note that arguments passed directly to the Logfire SDK methods are shown under 'Arguments' in the Live view details panel, but they are still stored in the same attributes column.

tags

This is an optional array of strings that can be used to group records together.

Each tag is displayed as a colored bubble in the Live view after the message.

To find records with the same tag, use the array_has function, e.g. array_has(tags, 'a tag') in the above example.

To set a tag in the Python Logfire SDK, pass a list of strings to the _tags argument in the SDK methods. Note the leading underscore. Alternatively, logfire.with_tags('a tag') will return a new Logfire instance with all the usual methods, where 'a tag' will be automatically included in the tags of all method calls.

OpenTelemetry doesn't have a native 'tags' concept. To set a value for the tags column when using other OpenTelemetry SDKs, set the attribute logfire.tags. This will not be kept in the attributes column.

level

This represents the severity level (aka the 'log level') of the record.

It's stored in the database as a small integer so that it supports operators like >= and <, but we provide some SQL magic to allow you to use the string names in comparisons. For example, level = 'warn' will match the example record above, even though the actual stored value is 13. A common useful query is level > 'info' to find all 'notable' records like warnings and errors.

The level is most commonly set by using the appropriate method in the Logfire SDK, e.g. logfire.warn(...) or logfire.error(...), but there are several other ways.

The default level for spans is info. If a span ends with an unhandled exception, the level is usually set to error. One special case is that FastAPI/Starlette HTTPExceptions with a 4xx status code (client errors) are set to warn.

You can convert level names to numbers using the level_num SQL function, e.g. level_num('warn') returns 13.

You can also use the level_name SQL function to convert numbers to names, e.g. SELECT level_name(level), ... to see a human-readable level in the Explore view.

The numerical values are based on the OpenTelemetry spec. Some common values: info is 9, warn is 13, and error is 17.

OpenTelemetry logs have a native severity level, but spans do not. Spans with a status code of ERROR will have a level of error, otherwise the level is set to info. To set a custom value for the level column when using other OpenTelemetry SDKs, set the attribute logfire.level_num. This will not be kept in the attributes column.

Span tree

trace_id

This is a unique identifier for the trace that this span/log belongs to.

A trace is a collection of one or more records that share the same trace_id, structured as a tree. It typically represents one high level operation such as an HTTP server request or a batch job.

If you query individual records in the explore view, dashboard tables, or alerts, we recommend including trace_id in the SELECT clause. The values will become clickable links in the UI that will take you to the Live view filtered by that trace, making it easy to explore a record in context. For alerts sent as slack messages, note that this doesn't apply to the slack message itself, but the title of the slack message will link to the alert run results in the UI, and the table there will have clickable trace_id links.

Technically the trace ID is a 128-bit (16 byte) integer, but in the database it's represented as a 32-character hexadecimal string. For example, the following code:

from opentelemetry.trace import format_trace_id

import logfire

logfire.configure()

with logfire.span('foo') as span:
    trace_id = span.get_span_context().trace_id
    print(trace_id)
    print(format_trace_id(trace_id))

will print something like:

2116451560797328055476200846428238844
01979d1e4e4325335569dba4459473fc

The second line is what you'll see in the database and UI.

Most OpenTelemetry SDKs generate trace IDs that are completely random. However, the Python Logfire SDK generates trace IDs where the first few characters are based on the current time. This means that if you want to quickly check at a glance if two records are part of the same trace, it's better to look at the last characters.

span_id

This is a unique identifier for a single span/log within a trace.

To filter down to a specific record, use a combination of trace_id and span_id, e.g. WHERE trace_id = '01979d1e4e4325335569dba4459473fc' AND span_id = 'a1b2c3d4e5f6g7h8'. Querying only by span_id is significantly less efficient and might not always be correct. Because of this, while span_id will produce clickable links in the same way as trace_id, it will only do so if the trace_id column is also present.

Technically the span ID is a 64-bit (8 byte) integer, but in the database it's represented as a 16-character hexadecimal string, similar to the trace ID, but shorter.

parent_span_id

All spans in a trace are structured as a tree, where each span can have zero or more child spans, and all spans except the root span have a single parent span identified by parent_span_id.

To filter down to only root spans, use WHERE parent_span_id IS NULL.

If you need to work with data that's spread across pairs of parent/child spans, use a JOIN on the records table that checks both trace_id and parent_span_id, e.g.:

SELECT
    parent_records.message AS parent_message,
    child_records.message  AS child_message
FROM records parent_records
JOIN records child_records
    ON  child_records.trace_id       = parent_records.trace_id
    AND child_records.parent_span_id = parent_records.span_id

For example this code:

with logfire.span('parent'):
    logfire.info('child')

with the above query will return a single row with parent_message set to 'parent' and child_message set to 'child'.

If you find yourself needing to do this, consider using Baggage instead.

Timestamps

start_timestamp

The UTC time when the span/log was first created/started.

This is the time shown on the left side of the list of records in the Live view.

All views in the UI have some time range dropdown that filters on this column, so you usually don't have to. For example, in the Live view the default is set to 'Last 5 minutes'. But if you wanted to do this manually in SQL, you could use a WHERE clause like start_timestamp >= now() - interval '5 minutes'.

In dashboard queries, a time series chart querying records should have time_bucket($resolution, start_timestamp) in the SELECT clause, which will be used as the x-axis. $resolution is a variable that will be replaced with the time resolution of the dashboard, e.g. 1 minute. This variable doesn't exist outside of dashboards, so if you want to copy a query from a dashboard to the Explore view, tick 'Show rendered query' first. This will fill in the variable with the actual value, e.g. time_bucket('1 minute', start_timestamp).

Warning

Prefer this column over created_at, which is an internal timestamp representing when the record was created in the database.

Warning

The metrics table also has a start_timestamp column, but you should usually use recorded_timestamp instead, which doesn't exist in the records table.

end_timestamp

The UTC time when the span/log was completed/ended.

For logs, this is the same as start_timestamp because logs don't have a duration.

duration

The time in seconds between start_timestamp and end_timestamp.

For example, duration > 2 will match all spans that took longer than 2 seconds to complete.

For logs, this is always null. Otherwise it's equivalent to EXTRACT(EPOCH FROM (end_timestamp - start_timestamp)).

Exceptions

is_exception

This is a boolean column which is true when an exception is recorded on the span/log.

This usually applies to spans that ended with an unhandled exception, or logs that were created with the method logfire.exception(...). See the manual tracing docs on exceptions for other possible ways that exceptions can be recorded.

Exceptions usually represent errors, but not always. To filter down to exceptions that are errors, use WHERE is_exception AND level >= 'error'. Also note that error logs are not always exceptions, e.g. logfire.error(...) does not set is_exception to true.

If is_exception is false, the other columns in this section will be null.

Technically, an exception being recorded on a span means that there's a span event (an item in the otel_events column) with the name exception. The remaining columns in this section are derived from attributes of the first such event. In the unlikely case that there are multiple exception events, we might change which event is used in the future to derive the other columns.

exception_type

This is the fully qualified name of the exception class, e.g. ValueError or fastapi.exceptions.HTTPException.

It's derived from the exception.type attribute of the exception span event.

exception_message

This is the message of the exception, e.g. this code:

import logfire

logfire.configure()

with logfire.span('my pan'):
    raise ValueError('oops')

will produce a record with exception_message set to 'oops'.

Note that this can be an empty string if the exception has no message, e.g. raise ValueError(). This is different from null, which means that the record is not an exception.

This is derived from the exception.message attribute of the exception span event.

exception_stacktrace

This is the fully formatted traceback of the exception, usually a long multiline string. It can be very useful to look at, but isn't great for querying.

This is derived from the exception.stacktrace attribute of the exception span event.

Resource attributes

otel_resource_attributes

This is a JSON object containing the resource attributes of the span/log. Typically, all spans/logs produced by a single process will have the same resource attributes.

You can query it using the ->> operator, similar to the attributes column.

Technically, each call to logfire.configure() can create a different set of resource attributes, so it should only be called once if possible.

In Logfire and other OpenTelemetry SDKs, you can set arbitrary resource attributes by setting the OTEL_RESOURCE_ATTRIBUTES environment variable to a comma-separated list of key-value pairs, e.g. OTEL_RESOURCE_ATTRIBUTES=service.name=my-service,service.version=1.0.0.

Metrics and spans/logs produced by the same process will share the same resource attributes, and the metrics table has this column as well as many of the others in this section.

All other columns in this section are just convenient aliases for some resource attributes.

deployment_environment

This represents the environment in which the service is running, e.g. production, staging, or development. See the Environments guide for more details.

This is set to otel_resource_attributes->>'deployment.environment.name' if present, falling back to otel_resource_attributes->>'deployment.environment' otherwise to accommodate older versions of the OpenTelemetry semantic conventions.

service_name

This is equivalent to otel_resource_attributes->>'service.name'.

This is an optional label identifying the type of service/application that's being run, e.g. web-api or background-worker. If you run the same code and command over many processes (horizontal scaling) then they should all have the same service_name, whereas two processes doing completely different things should ideally have different service names.

In the Live view, this is shown as a colored bubble next to the record's timestamp in the list of records. In the details panel, clicking the service_name bubble offers options to copy or filter by that service name.

Tip

Adding a service_name filter where possible is a good way to speed up SQL queries.

In the Logfire Python SDK, you can set this by passing the service_name argument to logfire.configure(). Alternatively you can set the LOGFIRE_SERVICE_NAME environment variable, or set service_name in the pyproject.toml file.

For other OpenTelemetry SDKs, use the OTEL_RESOURCE_ATTRIBUTES environment variable, e.g. OTEL_RESOURCE_ATTRIBUTES=service.name.

If it's not configured, it will usually be set to unknown_service as required by the OpenTelemetry spec, in which case no bubble will be shown in the Live view. However some SDKs might add the process executable name after unknown_service, e.g. unknown_service:python, in which case the bubble will be shown. In this case we recommend setting a proper service_name to avoid confusion, or just setting it to unknown_service explicitly to hide the bubble if you only have one kind of service.

service_version

This is equivalent to otel_resource_attributes->>'service.version'.

This is an optional label identifying the version of the service/application that's being run, e.g. 1.2.3 or a git commit hash.

In the Logfire Python SDK, you can set this by passing the service_version argument to logfire.configure(). Alternatively you can set the LOGFIRE_SERVICE_VERSION environment variable, or set service_version in the pyproject.toml file. If it's not set, it will try running the git rev-parse HEAD command to get the current git commit hash.

For other OpenTelemetry SDKs, use the OTEL_RESOURCE_ATTRIBUTES environment variable, e.g. OTEL_RESOURCE_ATTRIBUTES=service.version=1.2.3.

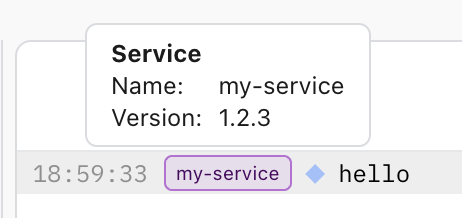

In the Live view, if the service name is set, then hovering over the service name bubble will show the service version in a tooltip. For example, this code:

import logfire

logfire.configure(service_name='my-service', service_version='1.2.3')

logfire.info('hello')

will show this:

service_instance_id

This is equivalent to otel_resource_attributes->>'service.instance.id'.

This should be a unique identifier for the instance of the service that's running.

In the Logfire Python SDK, a random UUID is generated when logfire.configure() is called. You can override this by setting the OTEL_RESOURCE_ATTRIBUTES environment variable, e.g. OTEL_RESOURCE_ATTRIBUTES=service.instance.id=my-unique-id-1234.

process_pid

This is equivalent to otel_resource_attributes->>'process.pid'.

The Logfire Python SDK sets this to os.getpid() when logfire.configure() is called or when the process gets forked. This is the only resource attribute that is automatically updated when the process is forked. So while service_instance_id is usually unique for different processes, if you also want to distinguish between different forks of the same process, use a combination of service_instance_id and process_pid. However, beware that some components of the OpenTelemetry SDK which Logfire uses are not fork-safe.

Other resource attributes

The following columns corresponding to OpenTelemetry semantic conventions are also available, but the UI and SDK have no special support for them:

Column Name	Resource attribute name
service_namespace	service.namespace
telemetry_sdk_name	telemetry.sdk.name
telemetry_sdk_language	telemetry.sdk.language
telemetry_sdk_version	telemetry.sdk.version

Other columns

otel_scope_name

This is the name of the OpenTelemetry scope (i.e. the instrumenting library) that produced the span/log.

For example, logfire.instrument_django() uses the opentelemetry.instrumentation.django module, which is also the name of the scope. So otel_scope_name = 'opentelemetry.instrumentation.django' will filter down to Django web requests.

The default value for records produced by Logfire SDKs is logfire. Specific instrumentations add a suffix, e.g. logfire.openai.

You can set a custom suffix with the following code:

import logfire

logfire.configure()

scoped_logfire = logfire.with_settings(custom_scope_suffix='my_scope')

scoped_logfire.info('hello')  # will have the scope `logfire.my_scope`
logfire.info('world')  # will have the scope `logfire`

In the Live view, part of the scope is shown as a grey bubble on the right of the record's message. Hovering over it will show the full scope name in a tooltip, along with the otel_scope_version if present:

In the details panel of a span in the Live view, clicking the otel_scope_name bubble offers options to copy or filter by that scope name.

In other OpenTelemetry SDKs, the scope name is set when obtaining a tracer (from a tracer provider).

otel_scope_version

This is an optional version of the OpenTelemetry scope (i.e. the instrumenting library) that produced the span/log.

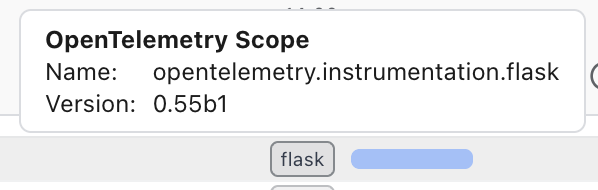

In the live view, the scope name (see above) is shown as a grey bubble on the right of the record's message, and hovering over it will show the scope version in a tooltip.

http_response_status_code

This is set to attributes->>'http.response.status_code' if present, falling back to attributes->>'http.status_code' otherwise to accommodate older (but still common) versions of the OpenTelemetry semantic conventions. These attributes are set by HTTP server and client instrumentations, e.g. logfire.instrument_fastapi() or logfire.instrument_httpx().

In the live view, this is shown after the message with an arrow, e.g. GET /users/123 → 200.

Querying http_response_status_code >= 400 is a good way to find all HTTP requests where something went wrong.

This column is an integer. If you somehow set the http.response.status_code attribute to a string that can't be converted to an integer, then http_response_status_code and even attributes->>'http.response.status_code' will be null, but (attributes::text)->>'http.response.status_code' will work.

url_full

This is set to attributes->>'url.full' if present, falling back to attributes->>'http.url' otherwise to accommodate older (but still common) versions of the OpenTelemetry semantic conventions. These attributes are set by HTTP server and client instrumentations, e.g. logfire.instrument_fastapi() or logfire.instrument_httpx().

log_body

While the records produced by methods such as logfire.info() are typically referred to as 'logs', under the hood they are actually spans with zero duration. OpenTelemetry has a separate concept of 'logs' which are not spans, but which Logfire also stores in the records table. Logs can have bodies, which are different from attributes and are stored in the log_body column.

The body can be a plain string, in which case it will be stored just like that, or it can be a structured object which will be serialized to JSON and can be queried like attributes using operators like ->>.

kind

This indicates the type of the record. It can be one of the following values:

• span: This has a duration and may have children.
• log: This may either come from a Logfire SDK method like logfire.info() which produces zero duration spans with the attribute logfire.span_type set to log, or it can come from an actual OpenTelemetry log which is not a span at all and may have a body in the log_body column.
• span_event: This is a span event, a sort of mini-log attached directly to a span during tracing. This is different from the newer OpenTelemetry events which are a type of log. Span events are copied into new rows of records with the kind set to span_event to make them easier to query, unless the event name is exception. All span events also currently remain attached to the original span in the database in the otel_events JSON column, but this may change in the future.
• pending_span: This is a special case that should be handled with care. The records 'table' is actually a view on the table records_full with the filter kind != 'pending_span'. When a Logfire SDK starts a span, it may send a span with no duration and logfire.span_type set to pending_span. This allows the span and its children to be displayed in the Live view before it finishes, and ensures there's a record of the span even if it never finishes (e.g. if the process crashes). When the span finishes, the final span is sent with the same trace_id and span_id, which becomes a record with kind = 'span'. The original pending span is still kept in the database, but the Live view deduplicates it and only shows the final span. However this deduplication fails if you use a SQL query in the Live view that matches pending spans and not the corresponding final spans, in which case you will see only the pending span and can be misled into thinking that the span is still in progress. The simplest such query is kind = 'pending_span'.

This is not to be confused with the OpenTelemetry span kind, which isn't stored in the database.

Other otel_* columns

• otel_status_code is the span status. Rather use level.
• otel_status_message is the span status description when the status is an error. In Python, this is a combination of the unqualified exception type and the exception message. Prefer using exception_type and exception_message instead.
• otel_events is a JSON array of span events attached to the span. These are also copied into new rows of records with the kind set to span_event, unless the event name is exception.
• otel_links is a JSON array of span links attached to the span.
• otel_scope_attributes is arbitrary additional structured data about the OpenTelemetry scope that produced the span/log, although this is very rarely used. See otel_scope_name and otel_scope_version which are more useful.

Other span attributes

The following columns correspond directly to OpenTelemetry span attribute semantic conventions and are produced by some HTTP instrumentations.

Column Name	Attribute name
http_route	http.route
http_method	http.method
url_path	url.path
url_query	url.query

Internal columns

These columns are used internally by Logfire and you should ignore them:

• attributes_json_schema
• attributes_reduced
• created_at
• project_id
• day
• otel_resource_attributes_reduced
• _lf_*
